Exploring reaction mechanism for ammonia combustion: reactive molecular dynamics simulations and kinetic modeling study

The overexploitation of fossil fuels has triggered severe resource depletion and environmental crises, particularly through excessive CO₂ emissions^[1]. This urgency drives the global energy transition toward low-carbon and carbon-free alternatives to enable sustainable development^[2]. Although hydrogen (H₂) is recognized as a promising carbon-neutral energy carrier, its inherent physicochemical limitations pose significant barriers to its safe storage, efficient transportation, and large-scale deployment^[1]. Ammonia (NH₃) is an emerging carbon-free fuel that boasts a high hydrogen content and high energy density. Owing to its ease of liquefaction, it offers practical advantages for storage, transportation, and energy storage systems^[2]. Its efficient utilization plays an important role in building a low-carbon energy system. Currently, ammonia is widely regarded as a highly promising alternative to fossil fuels, with successful tests in gas turbines and internal combustion engines demonstrating its potential for practical application^[3].

However, the utilization of ammonia as a fuel presents obstacles, including its low laminar burning velocity (LBV), poor flammability, and narrow flammability range. As a result, early research mainly focused on co-combustion with highly reactive fuels such as H₂^[4], methane (CH₄)^[5], or using techniques such as oxy-fuel combustion^[6] to improve the reactivity of ammonia. Although there has been some progress in the research on the co-combustion of ammonia and highly reactive fuels, research on the combustion characteristics of pure ammonia in an air atmosphere is still relatively scarce. More importantly, the combustion reaction mechanism of ammonia is not yet fully understood, and key parameters such as pollutant formation are still incomplete, which hinders the large-scale application of ammonia as a fuel^[7]. Hence, to enable the effective use of ammonia as an energy source, a deeper understanding of its combustion behavior, characteristics, and underlying reaction mechanisms is required.

As a key combustion parameter, the LBV is essential for describing flame stability, extinction, and structure, while also playing a vital role in the assessment and validation of chemical kinetic models. Takizawa et al.^[8] measured the LBV of NH₃/Air mixtures under different equivalence ratios (ϕ) using the spherical vessel (SV) method. They found that the LBV of NH₃ peaked at approximately 7.2 cm/s at an equivalence ratio of 1.1. Furthermore, under lean fuel conditions, the flame front exhibited a concave inward structure, a phenomenon attributed to the buoyancy effect that promotes upward flame propagation. Mei et al.^[9] compared the flame morphology and burning velocity of NH₃/Air under normal and oxygen-enriched conditions. Their results demonstrated that an oxygen-enriched environment enhances flame propagation and significantly mitigates the buoyancy effect. Additionally, they observed that while burning velocity increases with oxygen concentration, the primary reaction pathway of NH₃ remains unchanged. Lhuillier et al.^[10] employed the spherical flame method to measure the laminar burning velocity of NH₃ under various temperatures and hydrogen concentrations at atmospheric pressure. They reported a progressive increase in LBV with elevated hydrogen content and temperature. Hayakawa et al.^[11] were the first to experimentally measure the laminar burning velocity of NH₃/Air at pressures up to 5 atm, reporting a maximum unstretched LBV of approximately 7 cm/s. Chen et al.^[12] examined laminar flame parameters of NH₃/Air mixtures under varying equivalence ratios and initial pressures. They noted that the maximum flame velocity occurs at an equivalence ratio of 1.1, and both flame speed and flame thickness decrease with increasing pressure. Shrestha et al.^[13] measured ammonia flame velocity under high temperature and pressure with varying hydrogen and oxygen concentrations. Their findings aligned with those of Mei & Lhuillier, confirming that LBV increases with temperature and decreases with pressure. They also provided the first measurements of ammonia burning velocity at 7 and 10 bar. Kanoshima et al.^[14] and Liang et al.^[15] also investigated NH₃/Air LBV under high temperature and pressure conditions, corroborating the results reported by Shrestha et al. Furthermore, Alvarez et al.^[16] studied NH₃/Air flames under high pressure and observed a non-linear decrease in LBV with increasing pressure, identifying reactions involving NH₂ and NO as particularly significant. Zhou et al.^[17] measured laminar burning velocities of NH₃/Air, NH₃/H₂/Air, NH₃/CO/Air, and NH₃/CH₄/Air within temperature and equivalence ratio ranges of 298−423 K and 0.7−1.4, respectively, and developed a new chemical mechanism for validation. Kohansal et al.^[18] explored NH₃/CH₄/Air flames and found that at an ammonia molar fraction of 0.4, the LBV reached values comparable to those of hydrocarbon flames. They also highlighted the absence of direct competitive reactions between NH₃ and CH₄, noting that competition occurs primarily through consumption of O/H radicals. Liu et al.^[19] studied NH₃/C₂H₄/Air flames under elevated temperature and pressure. Their results indicated that C₂H₄ addition promotes the formation of new intermediates, enriches reaction pathways, accelerates consumption of both fuels, and increases ammonia flame velocity. They also emphasized the critical role of the reaction H + O₂ = OH + O in enhancing the burning velocity of NH₃/C₂H₄/Air mixtures.

Ignition delay time (IDT) is a crucial parameter for assessing burner ignition and flame-holding stability, as well as a key metric for validating chemical reaction mechanisms^[20]. Species profiles (SP) reflect the dynamic evolution of key components, radicals, pollutants, etc., during combustion processes, providing insights into critical chemical reaction mechanisms of fuels. The IDT of NH₃/O₂/Ar mixtures was determined by Mathieu et al.^[21] using a shock tube. Their results demonstrated that lean mixtures exhibited relatively short IDT at elevated pressures, whereas the equivalence ratio showed minimal effect under low-pressure conditions. Furthermore, increased pressure was observed to enhance ignition promotion. Shu et al.^[22] further expanded the experimental conditions of Mathieu and obtained similar conclusions. However, they pointed out that under lean fuel conditions with a pressure exceeding 20 bar, the IDT was longer. He et al.^[23] measured the IDT of NH₃/O₂ and NH₃/H₂/O₂ mixtures using a rapid compression machine (RCM). Their results demonstrated that the addition of H₂ increased the fuel reactivity and promoted ignition, while the equivalence ratio varied depending on the amount of hydrogen added. Dai et al.^[24] and Chen et al.^[25] also investigated the IDT of NH₃/H₂/O₂ mixtures and observed a consistent trend with the work of He et al.^[23]. However, Dai et al. pointed out that under any pressure, the ignition of NH₃ would slow down with the increase in the equivalence ratio. Peng et al.^[26] explored the influence of the fuel concentration on ignition. The increase in the fuel concentration would intensify the reactions of NH₃ with more important radicals, thus promoting ignition. Regarding the species concentration, Dagaut et al.^[27] investigated the oxidation of NH₃ under different NO concentrations using a jet-stirred reactor (JSR) and explained the interaction between NH₃ and NO. Manna et al.^[28] conducted an in-depth study on the oxidation and pyrolysis of ammonia. They found that during the ammonia reaction process, the concentrations of NO and H₂ increased monotonically, while H₂ first increased, then decreased, and finally reached a maximum value. During the pyrolysis process, H₂ increased monotonically, and the yield under Ar-H₂O dilution was lower than that under Ar-only dilution. Osipova et al.^[29] experimentally investigated the oxidation of ammonia and ammonia/hydrogen mixtures. Their results demonstrated that hydrogen addition promoted the formation of H, O, and OH radicals, enabling their generation at significantly reduced temperatures. However, Sabia et al.^[30] explored the combustion of ammonia under N₂ dilution and found that NO had the highest concentration under lean fuel conditions, while H₂ had the highest concentration under rich fuel conditions.

Recent years have witnessed significant advancements in ammonia research as a zero-carbon fuel, with mechanisms underlying its combustion process developing rapidly, as indicated in Table 1. Since 2015, a variety of typical ammonia or ammonia-blended combustion mechanisms have been developed. However, it is worth noting that most of these mechanisms are designed for binary or multi-component fuels blended with ammonia, and their validation scopes are relatively narrow, usually limited to certain specific combustion characteristics and carried out under limited operating conditions. For example, based on Song's model^[31], Otomo et al.^[32] optimized the kinetic parameters of reactions related to NH₂, HNO, N₂H₂, etc., and constructed a combustion mechanism for NH₃/H₂/Air, and only verified it for LBV. Similarly, based on Mei's model^[9], Zhang et al.^[33] updated the thermodynamic parameters of key species such as NH₂, NH, and NNH, and proposed a kinetic mechanism for predicting the combustion behavior of NH₃ and NH₃/H₂ blends. However, their validation also mainly focused on the changes in components. Shrestha et al.^[34] conducted a comprehensive investigation into the oxidation kinetics of ammonia (NH₃) blended with methanol (CH₃OH) and ethanol (C₂H₅OH) under various conditions. They measured laminar flame speeds and ignition delay times of NH₃–alcohol mixtures, and developed a detailed kinetic model capable of accurately predicting the combustion characteristics of both pure NH₃ and NH₃-based fuel blends. Therefore, the development of an ammonia kinetic mechanism that can cover a wider range of operating conditions and meet multi-target requirements urgently needs to be studied.

As a powerful molecular simulation technique, Reactive force field molecular dynamics (ReaxFF MD) provides the capability to capture the precise reaction state at any given time point and track the detailed temporal evolution of all chemical species during combustion. This method has been widely applied to the study of fuel thermochemical reactions, such as pyrolysis^[38] and combustion^[39−42], to deeply explore product distribution and reaction mechanisms during fuel reactions. So as to deeply explore the product distribution and reaction channels during the fuel combustion process. Globally, the ReaxFF MD method has been employed by scholars to study the reaction mechanisms underlying ammonia and its blend combustion.

For example, Zhang et al.^[38] employed ReaxFF MD simulations to study coal-ammonia co-pyrolysis at temperatures between 3,000 and 3,500 K. Their results revealed that the presence of coal markedly reduced the activation energy required for ammonia pyrolysis, thereby accelerating its decomposition. Huang et al.^[39] utilized ReaxFF MD to examine the effect of H₂ on NH₃ combustion at different temperatures, systematically analyzing the pathway from NH₃ to NO. They found that adding hydrogen increased the production of H and OH radicals during ammonia combustion, thereby enhancing the combustion rate, with nitrogen-containing intermediates like HNO primarily reacting with OH and HO₂ to form NO_x. Zhang et al.^[40] explored the combustion behavior under fuel-lean to fuel-rich conditions at temperatures of 2,400−3,200 K with varying NH₃/CH₄ blending ratios, showing that there was no competitive relationship between ammonia and methane combustion; instead, methane addition enhanced ammonia reactivity and accelerated NH₃ consumption. Guo et al.^[42] investigated the combustion behavior and product distribution of NH₃/CH₄ at different temperatures and oxygen contents, revealing the micro-mechanism of NH₃/CH₄ combustion. Wang et al.^[43] studied the combustion process of NH₃/CH₄ in air under high temperature and pressure, finding that these conditions accelerated NH₃ consumption and influenced NO_x production. Hong et al.^[41,44] simulated the co-combustion behavior of coal and ammonia and NO formation characteristics under different oxygen equivalence ratios in the range of 2,500−3,500 K, discovering a competitive relationship between ammonia and coal, with ammonia dominating oxygen competition, resulting in an accelerated ammonia oxidation rate at the expense of coal oxidation, influenced mainly by temperature, blending ratio, and oxygen concentration. Wang et al.^[45] examined the impact of different ionization degrees on NH₃ combustion reaction rates and NO_x formation, analyzing the mechanism of NO_x formation. They found that at 2,000 K, NO concentration was lowest when the ionization ratio was 25%, reaching a maximum when the ionization ratio increased to 50%.

In conclusion, ammonia is widely recognized as a promising zero-carbon fuel with substantial potential to enable the decarbonization of energy systems. However, its combustion mechanisms remain incompletely characterized, with critical parameters, including pollutant formation pathways, lacking comprehensive data. The ReaxFF MD method has emerged as a critical computational framework for investigating ammonia combustion processes and reaction mechanisms. However, mechanistic research on ammonia fuel remains nascent, with limited exploration of ReaxFF MD-based combustion analysis. This study implements ReaxFF MD simulations to examine ammonia combustion under varying equivalence ratios and temperatures. By tracking the temporal evolution of key radicals and products, we elucidate ammonia's primary reaction networks and molecular-level formation pathways. Furthermore, novel reaction pathways identified through ReaxFF MD are integrated with established mechanisms to construct a comprehensive ammonia combustion framework, validated across multiple combustion characteristics.

The reactive force field was developed by the Vain group^[46]. This force field is grounded in the concept of bond order (BO), which quantifies the formation and rupture of chemical bonds, thereby enabling the simulation of interactions within chemical systems. Bond order is fundamentally dependent on interatomic distances and can be computed directly from them. Atomic interactions are governed by bond order, and by monitoring the evolution of bond orders throughout simulations, the formation and dissociation of chemical bonds can be accurately determined. This method provides a dynamic description of atomic and molecular interactions without relying on predefined reaction sites, as required by classical potentials^[46]. Additionally, it allows for the efficient calculation of larger molecular systems with relatively low computational resources. The reactive force field incorporates the system's total energy equation and the empirical bond order formula, as described in^[47]:

The above equation represents the system's total energy E_system, where E_bond, E_over, E_under, E_lp, E_angle, E_torsion, E_vdWaals and E_Coulomb are the bond energy, over-coordination energy, under-coordination energy, lone pair energy, angle energy, torsion potential energy, van der Waals interaction energy, and Coulomb interaction energy, respectively. BO_ij represents the bond order between atoms i and j, primarily composed of three components: sigma σ bonds, π bonds, and ππ bonds. Here, r_ij, r_o, and p_bo denote the interatomic distance, equilibrium bond length, and empirical parameters, respectively.

Due to its broad application in molecular dynamics simulations, ReaxFF is capable of modeling chemical reactions and thermodynamic properties at the microscopic scale. It has been applied in fields such as high-temperature pyrolysis^[38], combustion^[39−42].

In this study, the ReaxFF submodule within the open-source LAMMPS program^[48] was employed to simulate and analyze the ammonia combustion process. Post-simulation analysis was carried out using the Ovito software^[49] and the RMD_Digging program developed by Liu et al.^[50], with a particular focus on the evolution of key product distributions and the reaction pathways of ammonia combustion.

This study provides a comprehensive investigation into the effects of oxygen concentration and temperature on the ammonia combustion process over a wide range of conditions, encompassing equivalence ratios from 0.5 to 1.5 (covering both fuel-lean and fuel-rich regimes) and temperatures between 2,800 and 3,600 K. The stoichiometric combustion of ammonia is described by the following reaction:

Three distinct ammonia/oxygen simulation boxes were constructed, each containing 80 ammonia molecules along with 120, 60, and 40 oxygen molecules, respectively. These boxes were configured with periodic boundary conditions (i.e., ppp boundary conditions in LAMMPS). The simulation systems outlined in Table 2 were designed by varying the temperature. Figure 1 provides a visualization of the ammonia/hydrogen simulation system with an equivalence ratio of 1.0.

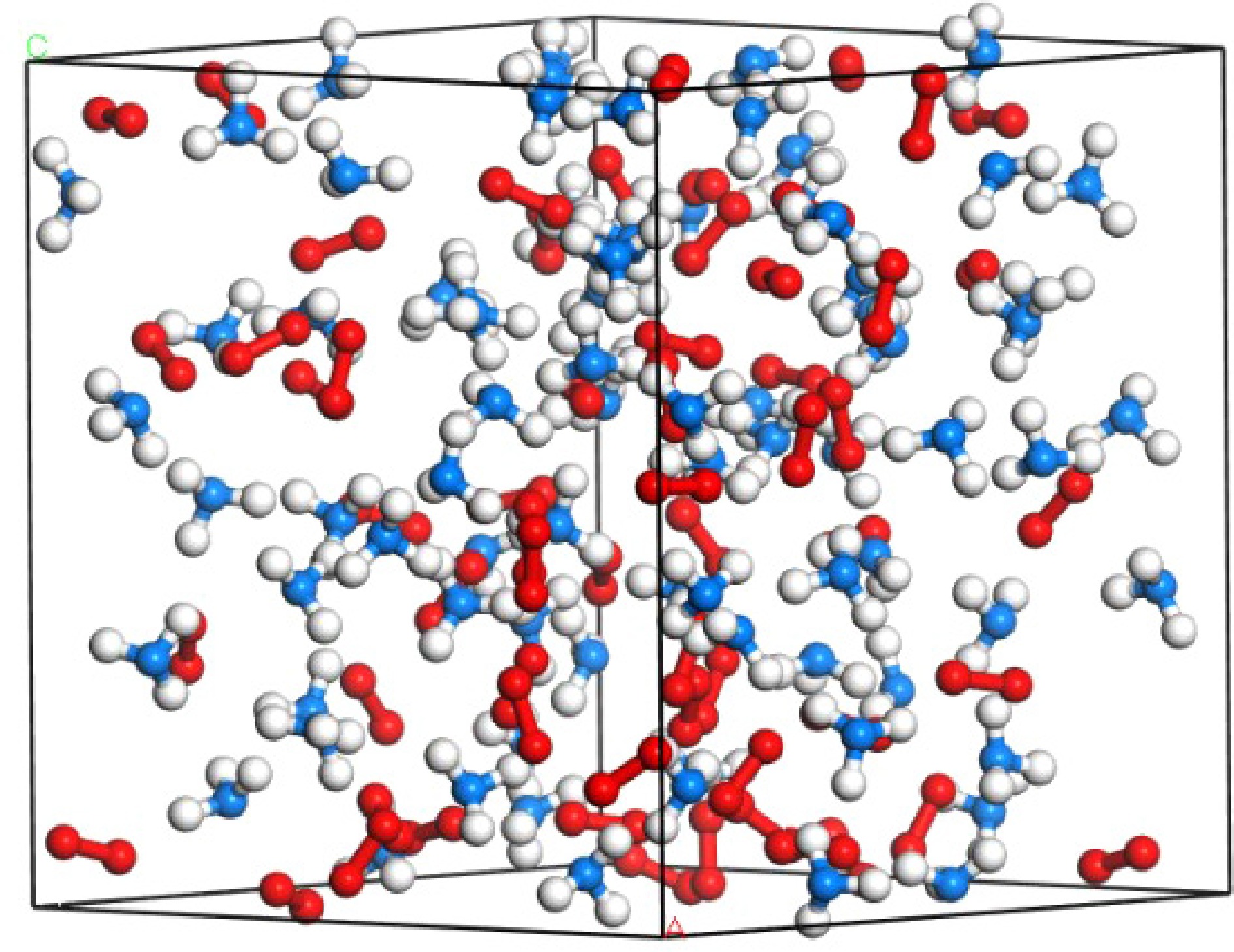

Figure 1.

Ammonia/oxygen premixed system (Equivalence ratio = 1.0, N is blue, H is white, O is red).

The simulations employed the C/H/N/O ReaxFF force field originally parameterized by Zhang et al.^[51] for N₂H₄ decomposition studies. This framework was subsequently adapted by Hong et al.^[44] and Wang et al.^[45] for NH₃/CH₄ combustion simulations, demonstrating predictive accuracy for NH₃ combustion characteristics. System initialization involved conjugate gradient energy minimization to eliminate molecular overlap artifacts. NVT ensemble simulations with 0.1 fs timestep over 500 ps duration were conducted across 2,800−3,600 K for varying equivalence ratios. Atomic trajectories sampled at 1 ps intervals enabled combustion process tracking.

Post-processing utilized RMD_Digging's species_analysis and chemi_mechanism modules to extract bond-order evolution, product formation patterns, and reactive trajectories. Ovito visualization software mapped reactant-product correlations, enabling mechanistic pathway reconstruction.

Mechanism construction, optimization, and validation method

Recent advances have yielded various ammonia-based combustion mechanisms, predominantly developed for multi-fuel blends and validated under limited operating conditions. This study establishes a predictive kinetic framework through hierarchical integration of NH₃ combustion models with ReaxFF MD simulations. The mechanism demonstrates multi-target validation across laminar burning velocities, ignition delay times, and species profiles under extended conditions: temperatures (298–1,900 K), pressures (1–40 atm), and equivalence ratios (0.5–2.0). Critical reaction parameters are re-evaluated through sensitivity analysis to optimize model fidelity.

Combustion simulations were implemented via Cantera's Python interface^[52] using three numerical approaches: (1) Adiabatic freely propagating flames for LBV determination in NH₃/Air systems; (2) Constant-volume reactors for IDT prediction; (3) Perfectly stirred reactors for species evolution analysis. Parameter configurations strictly followed experimental protocols, with model validation conducted against benchmark datasets and comparative mechanism assessments.

This study focuses on ammonia combustion, specifically examining how varying equivalence ratios and temperatures influence the combustion process. The reaction pathways involved in ammonia combustion were also analyzed. Systems 1, 2, and 3 are employed to explore the influence of equivalence ratios, while systems 2, 4, 5, 6, and 7 are utilized to assess the effect of temperature on the combustion dynamics. To gain deeper insight into the reaction mechanism of ammonia, this study investigated the pyrolysis process at 3,000 K using ReaxFF MD simulations, as illustrated in Supplementary File 1 (Fig. S1). The results indicate that NH₃ initially undergoes dehydrogenation to form NH₂ and H radicals. The generated H radicals further react with NH₃ to produce NH₂ and H₂. The NH₂ radicals are rapidly consumed through reaction channels such as NH₂ = NH + H and NH₂ + H = NH + H₂, yielding NH and H₂. Due to their high reactivity, NH and N radicals participate in reactions such as NH + H = N + H₂ and H + H = H₂, maintaining the radical concentrations at relatively low levels. This process also promotes a continuous increase in H₂ formation. Furthermore, as NH₂ dehydrogenates to form NH, these intermediate species (NH₂ and NH) proceed through a series of direct and indirect pathways toward N₂ formation, including reactions such as NH₂ + N = N₂ + H₂, NH = N + H, NH + H = N + H₂, NH + NH = N₂ + H₂, and N + N = N₂. These reactions are also accompanied by H₂ production, ultimately resulting in faster accumulation and a larger yield of H₂ compared to N₂ during ammonia pyrolysis. Additionally, minor reaction channels such as NH₂ + NH₂ = N₂H₄, N₂H₄ + NH = N₂H₃ + NH₂, and N₂H₄ = N₂H₂ + H₂ are also observed in the process. The reaction mechanisms of ammonia pyrolysis described above must also be given priority consideration when developing combustion mechanisms for ammonia.

Influence of equivalence ratio on ammonia combustion

Figure 2 depicts key combustion metrics at 3,000 K for equivalence ratios (ϕ = 0.5, 1.0, 1.5). Lean conditions (ϕ = 0.5) exhibit near-total NH₃ consumption with O₂ surplus, whereas stoichiometric combustion (ϕ =1.0) achieves complete reactant depletion. Fuel-rich systems (ϕ = 1.5) retain unreacted NH₃. These consumption patterns align quantitatively with literature benchmarks^[40], validating the C/H/N/O ReaxFF force field's fidelity in ammonia combustion dynamics. While equivalence ratio variations minimally alter the primary reaction sequence, residual reactants engage in secondary pyrolysis upon partner depletion – O₂ in lean or NH₃ in rich environments.

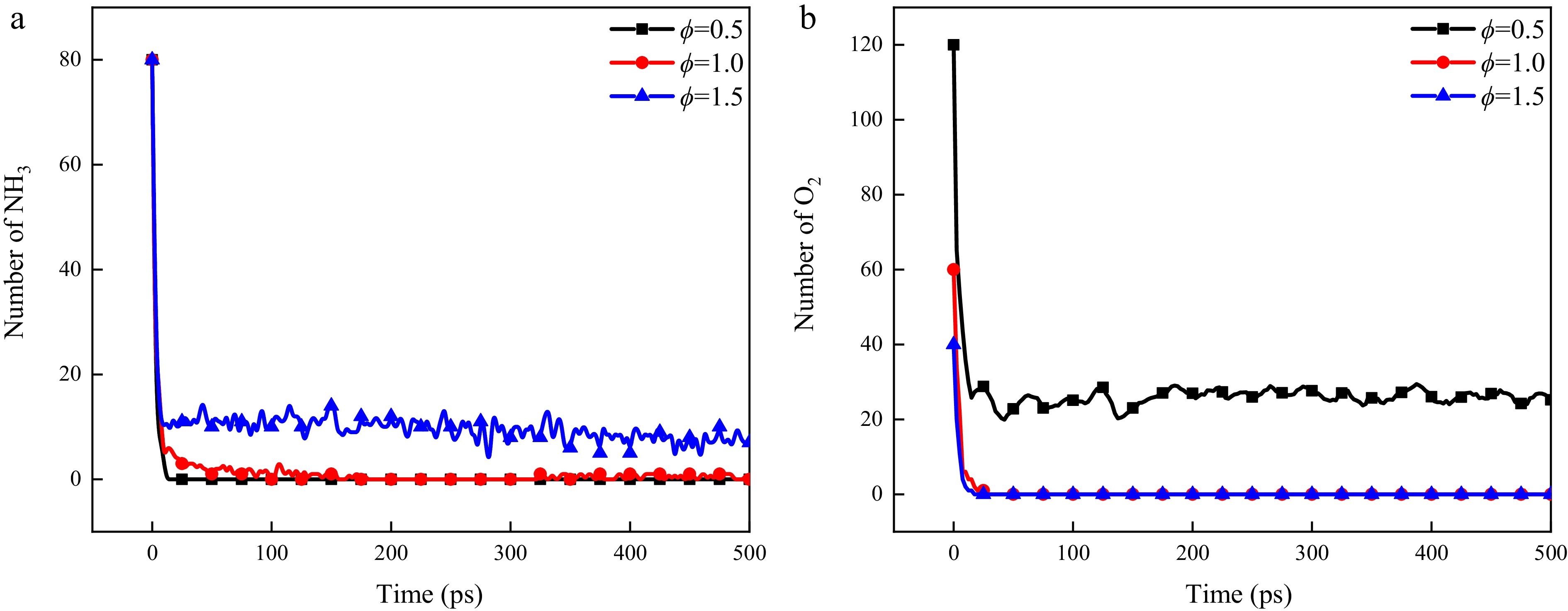

Figure 2.

Evolution of main reactants at different equivalent ratios.

Figure 3 depicts the changes in key radicals and products over time during ammonia combustion at different equivalence ratios when the temperature is 3,000 K. Figure 3a shows the variation curve of NH₂ radical over time. Under fuel-rich conditions, the peak concentration of NH₂ radicals is moderately lower than that observed under fuel-lean to stoichiometric conditions, with a small residual amount of NH₂ remaining. This behavior can be attributed to the excess ammonia present under fuel-rich conditions, which moderates the formation of NH₂ radicals, leading to a reduced peak value. However, the excess NH₃ undergoes thermal decomposition, leading to an increase in NH₂ through reactions such as R1:

Figure 3b and c present the temporal evolution of OH and H₂ concentrations, respectively. As shown in Fig. 3b, the peak concentration of OH radicals is highest under fuel-lean conditions and lowest under fuel-rich conditions. In Fig. 3c, a larger amount of H₂ persists under fuel-rich conditions. Under both fuel-lean and stoichiometric conditions, H₂ is gradually consumed after reaching its peak. The peak H₂ concentration under stoichiometric conditions is higher than that under fuel-lean conditions, and the consumption process occurs over a longer duration. These findings align with both the OH/H₂ variation trends observed in lean combustion conditions^[44] and the H₂ behavioral characteristics documented under fuel-rich environments^[41]. The observed kinetic behavior likely originates from radical oversaturation mechanisms inherent to fuel-lean combustion regimes, where molecular oxygen (O₂) serves dual roles as both oxidizer and chain-branching promoter, thereby accelerating radical pool proliferation through enhanced H-abstraction efficiency. After the ammonia fuel is completely reacted, there are still surplus oxygen molecules and O radical participating in the reaction process, through reaction channels such as R2−R4:

This results in the generation of more OH radical and accelerates the consumption of H₂, leading to a higher amount of OH but a lower production and rapid consumption of H₂ under lean-fuel conditions. Under rich-fuel conditions, due to the insufficient oxygen content itself, the complete reaction of NH₃ is restricted, resulting in the least amount of OH generated. The remaining H₂ may be because after the existing oxygen consumes part of the ammonia, there is still an excess of ammonia, causing some of the ammonia to decompose and participate in the reaction process. H₂ is a key intermediate species during ammonia combustion. Its formation primarily relies on pathways R5 and R6, both of which originate from H radicals. Therefore, the consumption channels of H radicals directly influence H₂ generation. Under conditions with sufficient oxygen, such as when the equivalence ratio is greater than or equal to 1, H radicals tend to react with O₂ to form species like OH, which suppresses pathways such as NH₃ + H = NH₂ + H₂ and H + H = H₂. Additionally, the resulting OH can further consume NH₃. As a result, H₂ does not accumulate effectively in oxygen-rich environments. In contrast, at an equivalence ratio of 1.5, H₂ can accumulate over an extended period before being consumed later. This behavior is consistent with the results shown in Fig. 3c. This leads to an excess of H radical under rich-fuel conditions, through a series of reactions such as R5 and R6:

result in additional H₂ formation under fuel-rich conditions.

Figure 3d shows the curve of NO changing with time. As expected, the emission of NO is mainly concentrated under lean-fuel to stoichiometric ratio conditions. This may be because subsequent reactions promote the further conversion of NO to N₂, resulting in a decrease in NO. NO formation becomes negligible under fuel-rich conditions due to oxygen-deficient combustion environments. This is probably due to the insufficient oxygen atmosphere, which restricts the formation of NO, leading to the emission of more unreacted ammonia. Variations of H, O₂, and N₂ under different equivalence ratios are presented in Supplementary File 1 (Fig. S2).

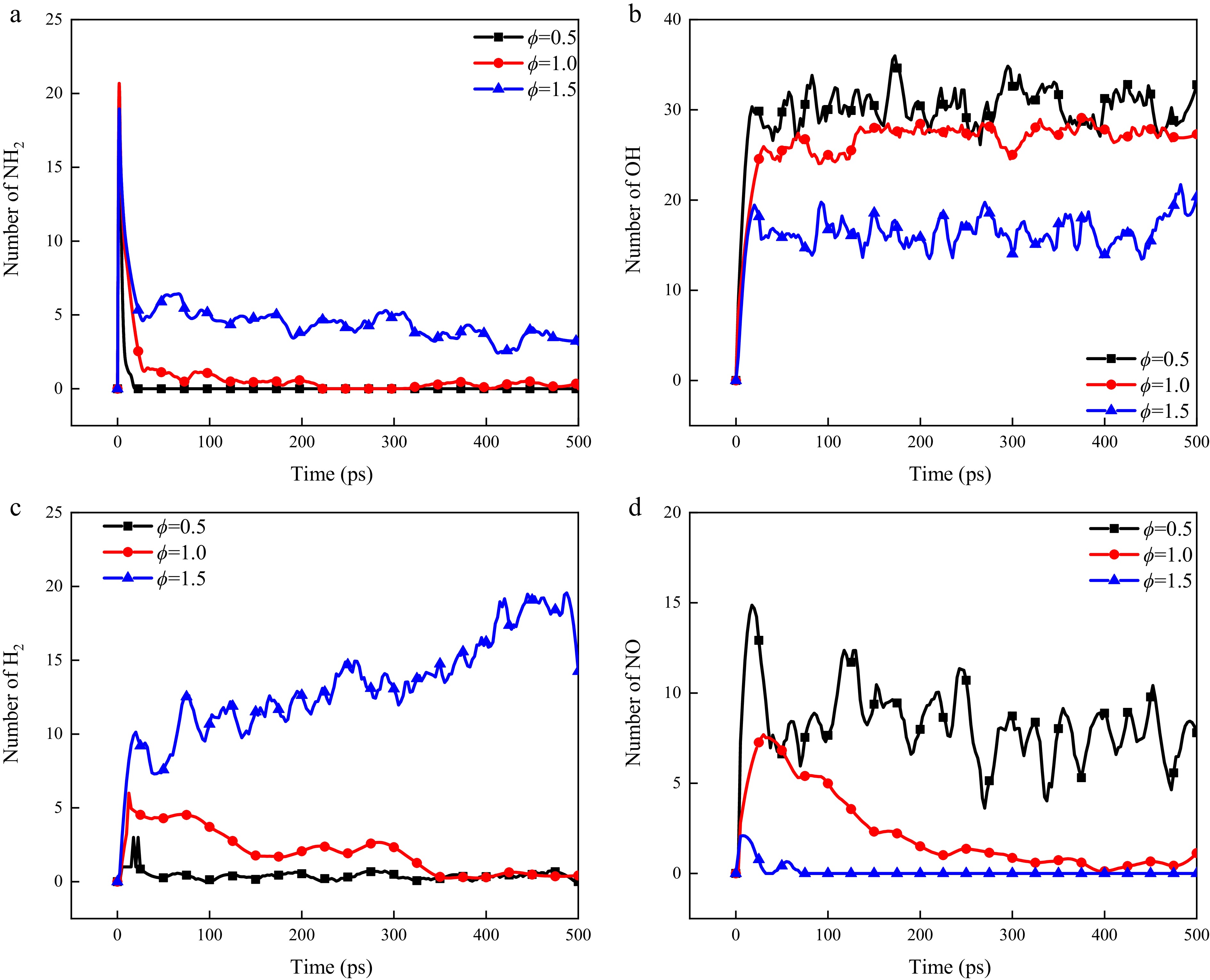

Figure 3.

Temporal evolution of main radicals and products at different equivalence ratios.

Influence of temperature on ammonia combustion

Figure 4 tracks the kinetic progression of NH₃/O₂ consumption at ϕ = 1.0 across thermal gradients. Thermal acceleration markedly enhances decomposition kinetics, with elevated temperatures (> 3,000 K) inducing earlier combustion initiation compared to reference studies^[41,44], a manifestation of our extended thermal regime investigation.

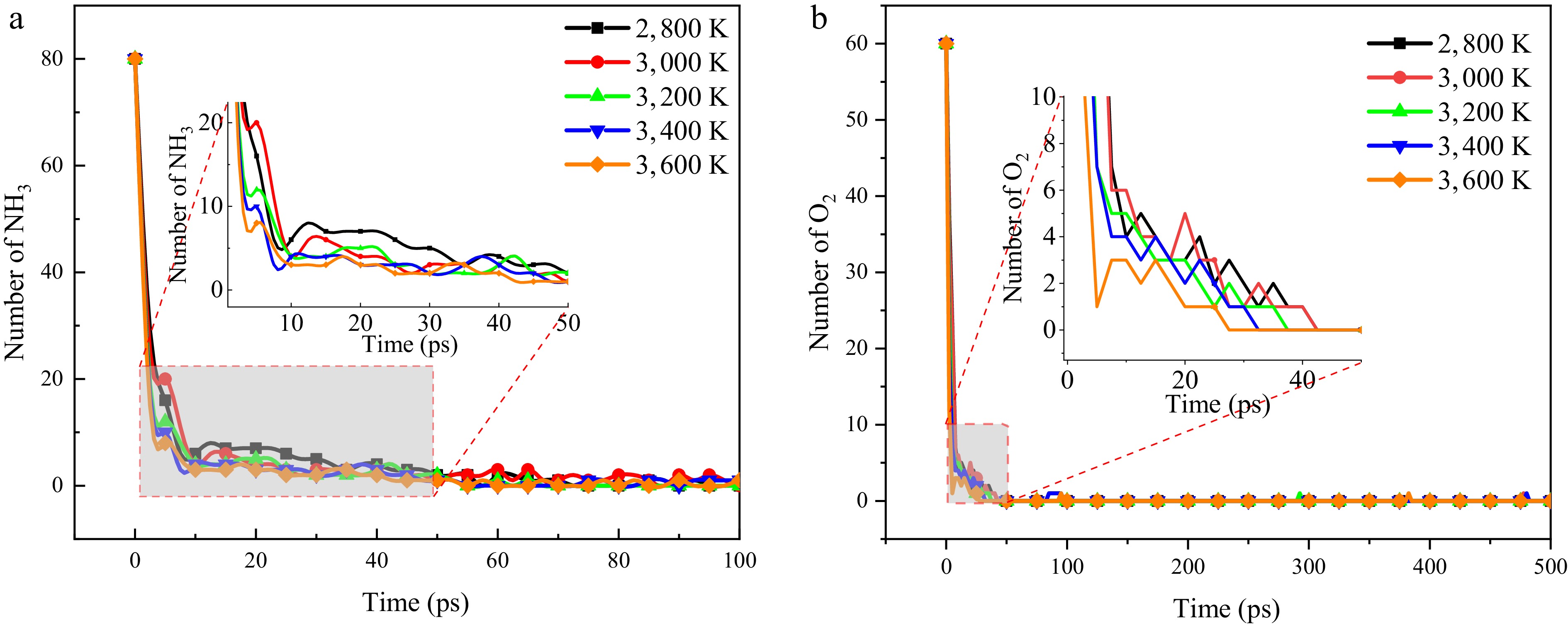

Figure 4.

Variation curves of NH₃ and O₂ with time at different temperatures.

Distinct differential depletion kinetics emerge: Oxygen achieves complete conversion within 50 ps at 2,800 K, while residual NH₃ persists at 21% concentration until 125 ps. This reactant hierarchy (O₂ > NH₃) validates the force field's predictive capacity for sequential consumption patterns in ammonia oxidation.

Figure 5 delineates temperature-dependent radical dynamics and product evolution at ϕ = 1.0 (see Supplementary File 1, Fig. S3 for full speciation). NH₂ radicals exhibit rapid peaking followed by accelerated depletion at elevated temperatures (Panel A). Temperature-dependent peak amplification manifests in OH/H₂ profiles (Panels B–C), with OH displaying thermal stabilization (sustained concentration post-peak) contrasting H₂'s transient intermediate behavior. NO formation kinetics (Panel D) confirm literature-consistent^[44] thermal acceleration effects, though divergent post-peak trajectories emerge under our equivalence ratio constraints.

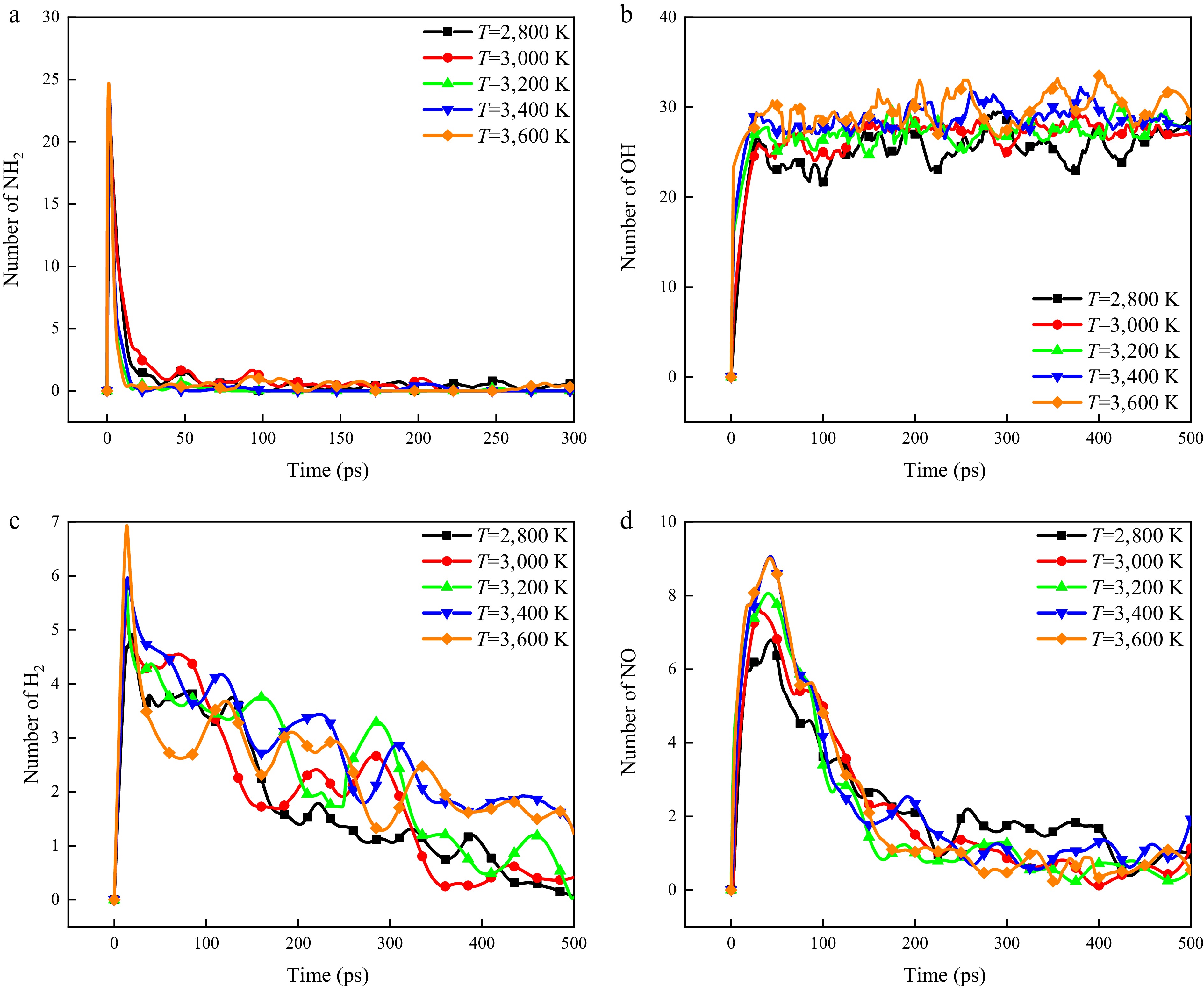

Figure 5.

Variation curves of radicals and formation products with time at different temperatures.

Reaction mechanism and pathway analysis

Figure 6 explores the ammonia combustion reaction network at an equivalence ratio of 1.0 and a temperature of 3,000 K. Figure 6a illustrates the nitrogen atom transfer pathways during the ammonia combustion process, while Fig. 6b depicts the hydrogen atom transfer pathways. The red lines represent the newly discovered paths.

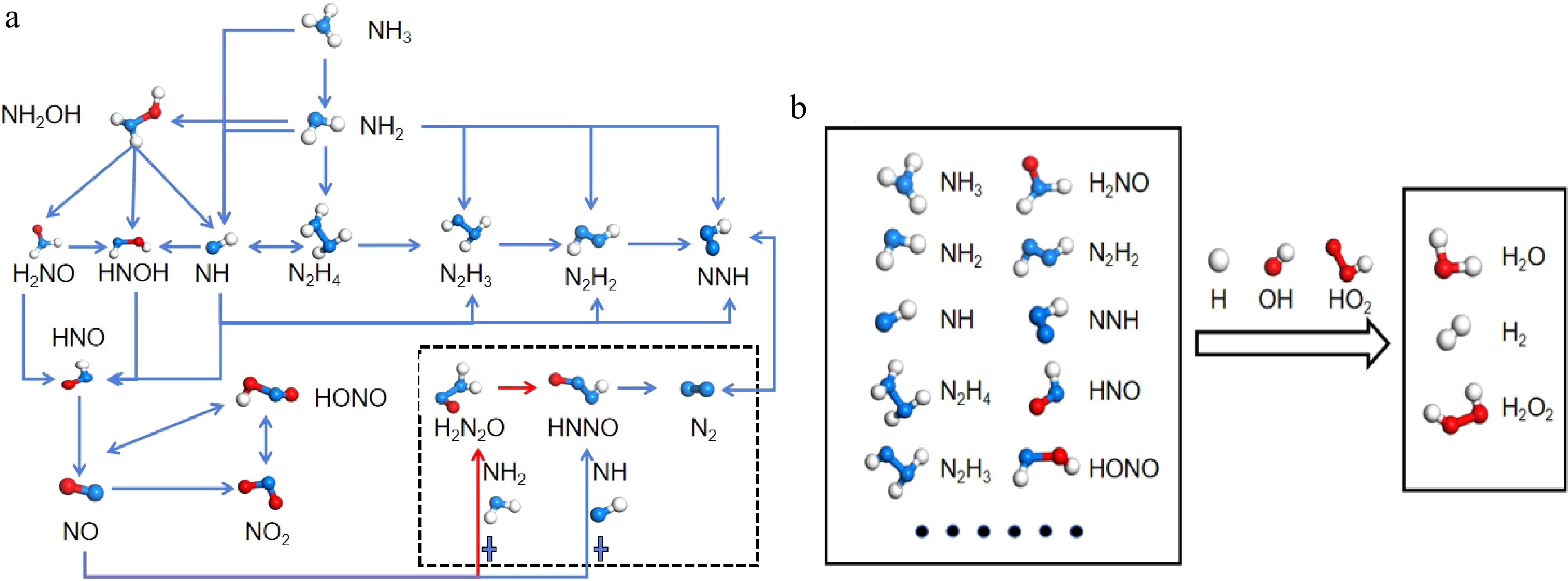

Figure 6.

Reaction path of ammonia combustion.

In Fig. 6a, it is shown that ammonia initially undergoes hydrogen abstraction reactions, predominantly producing NH₂ radicals. These NH₂ radicals further convert into NH radicals, with only a small fraction of NH₃ directly forming NH radicals. The subsequent reaction pathways of NH₂ radicals are diverse. They can be directly or indirectly converted to N₂ through the generation of radicals such as N₂H₄, N₂H₃, and N₂H₂, or they can be converted to NO through the generation of NH₂OH, HNOH, and HNO, which is similar to that in previous studies^[36,45]. Notably, this study identifies a small amount of NH₂OH, which primarily contributes to the indirect formation of HNOH and H₂NO through reactions R7–R10:

Regarding the reaction pathways for the formation of N₂, they can be summarized into two relatively major paths. One approach is the conversion to form NNH. NH can directly form NNH through reaction R11:

Alternatively, NH can react with N₂H₄, leading to a sequence of reactions: NH → (N₂H₄ → N₂H₃) → N₂H₂ → NNH. In the analysis of N₂H₂, it was found that, in addition to being formed by NH₂, NH, and N₂H₃, a very small amount of N₂H₃OH can also generate N₂H₂ through reaction R12:

This intermediate has not been mentioned in other literature. It is noteworthy that NNH and N₂ can interconvert through reactions, although initially, NNH predominantly converts to N₂. As N₂ accumulates, it gradually begins to convert back into NNH.

The other major pathway is the formation of NO. It can be converted to form NO through the route of NH₂ → NH (→ HNOH) → HNO → NO (that is, the route in the blue dashed box), which is consistent with the description^[36,45]. What is relatively different is that during this process, it is found that H₂NO, as an isomer of HNOH, can also generate HNO, but the contribution of H₂NO is relatively large. NO can be produced through the reactions of HNO and HONO radicals, with HNO being the primary contributor. HONO formation is closely related to NO and NO₂ and can be converted through reactions R13–R17:

The conversion relationships among HONO, NO, and NO₂ align with those described in the literature^[45], although in literature^[37], HONO is not considered a primary interconversion species with NO but is only mentioned in the mechanism files. Notably, when the NO production significantly increases, it can lead to the formation of two intermediate species, H₂N₂O and HNNO, through reactions R18–R20:

Prior to this, these intermediates were only mentioned in the literature^[45], but with some distinctions. The analysis in the study by Wang et al.^[45] pertains to fuel-lean conditions, and H₂N₂O was not mentioned in the absence of ionization, being identified only under conditions with a high degree of ionization. It can convert to N₂ through reactions R21–R23:

with NO being relatively less prevalent under ionized conditions. However, in this study, H₂N₂O and HNNO are both detected under stoichiometric conditions, where NO is observed to decline after reaching a certain concentration due to the presence of H₂N₂O and HN₂O, leading to an increase in N₂.

Figure 6b lists some species that contribute to the formation of H₂, H₂O, and H₂O₂. The hydrogen atom transfer pathways in these nitrogen-hydrogen compounds tend to favor hydrogen abstraction reactions, which primarily promote the formation of H₂, H₂O, and H₂O₂. The generated H₂ mainly originates from the reactions of NH₃, NH₂, NH, and N₂H₄ with single hydrogen atoms, while H₂O is largely produced from the reactions between nitrogen-hydrogen compounds and OH radicals. Additionally, H₂O₂ formation mainly depends on reactions involving HO₂ radicals. Of course, aside from these pathways, other reactions with O atoms and other species or self-decomposition reactions can also produce H₂, H₂O, and H₂O₂, although their contributions are relatively minor.

In this study, based on six well-performing NH₃ kinetic models, combined with the new reaction pathways obtained from ReaxFF MD, a relatively complete comprehensive kinetic mechanism model for NH₃ combustion is constructed by coupling. Moreover, the kinetic parameters of key reactions exerting a strong influence on combustion characteristics are updated and optimized. To validate the reliability and accuracy of the model, extensive comparisons are performed against existing experimental data for a wide range of ammonia combustion properties, including laminar burning velocity, ignition delay time, and species concentration profiles. Furthermore, kinetic analyses—such as reaction path and sensitivity analyses—are employed to elucidate the underlying reaction pathways and key mechanistic features of ammonia combustion.

Model construction

Seven NH₃ kinetic models demonstrating validated predictive accuracy for NH₃/Air and NH₃/H₂/Air combustion systems were systematically evaluated: Otomo model^[32], Mei model^[9], Han model^[2], Zhang model^[33], Wang model^[36], Zhu model^[37], and Shrestha model^[34]. These mechanisms are selected based on their demonstrated fidelity in reproducing LBVs and ITDs across equivalence ratios and pressures. Figure 7 shows the comparison of each mechanism. Although these mechanisms can predict the combustion characteristics of ammonia, they exhibit significant differences in reaction pathways, as shown in Supplementary File 1 (Fig. S4 and Table S1). Through the comparative study, it was found that the Mei model and the Zhang model showed good performance in the prediction of LBV, while the Zhu model showed good performance in the prediction of IDT. The Zhang model^[33] was based on the Mei model^[9] and updated the thermodynamic parameters of NH₂ and NH. Therefore, in this study, based on the hierarchical construction method, taking the Zhang model^[33] as the foundation, changes were made by combining the newly added species and the changed reaction parameters in the Zhu model^[37], and the new reaction paths discovered in the reactive molecular dynamics simulation are added.

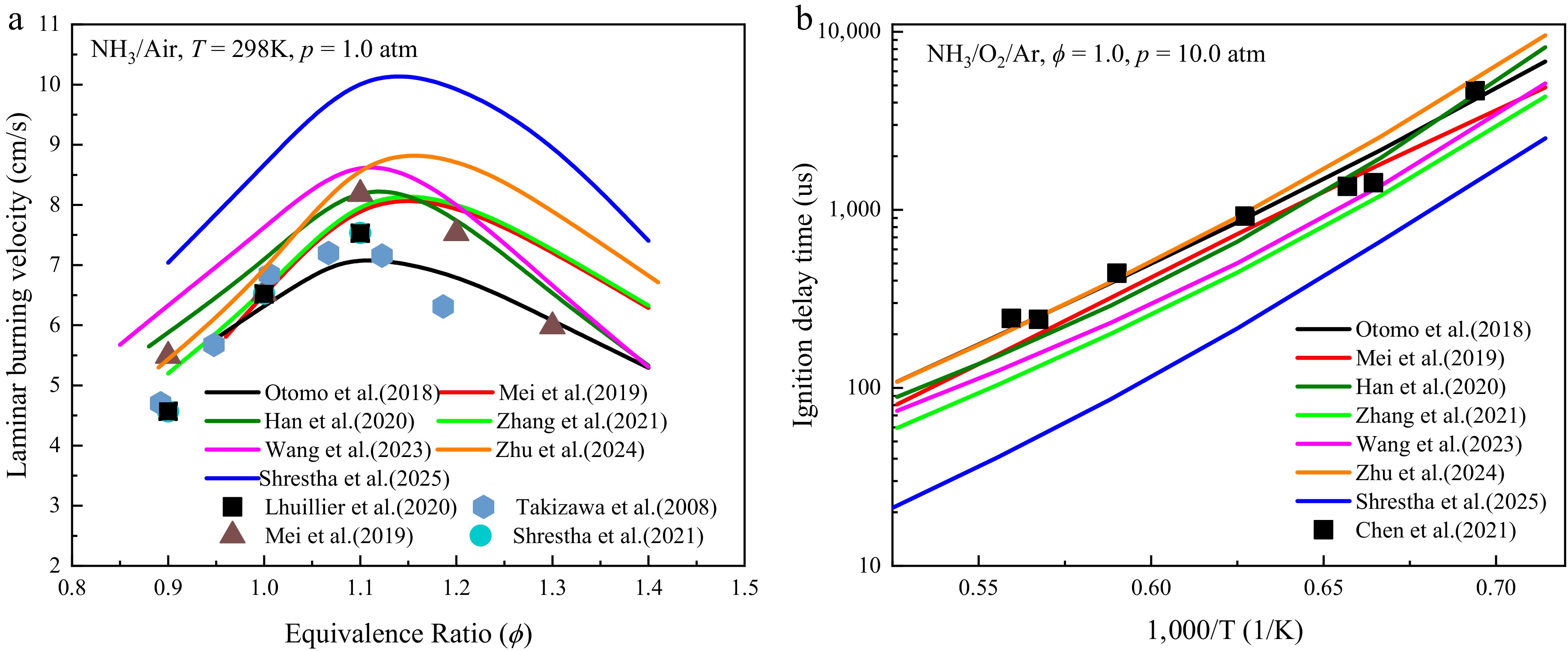

Figure 7.

Comparison of predictive capabilities of different mechanism. (The lines represent predictions seven comparative models, while the symbols correspond to experimentally measured data reported in Lhuillier et al.^[10], Takizawa et al.^[8], Mei et al.^[9], Shrestha et al.^[13], and Chen et al.^[25]).

The kinetic reaction mechanism is constructed through a coupling approach and primarily consists of three core components. The first component comprises validated sub-mechanisms for H₂, H₂O₂, and OH radicals. The H₂ sub-mechanism and related components have been comprehensively validated against experimental hydrogen combustion data by the Glarborg research group^[53].

The second component addresses two distinct pathways for nitrogen species formation: (1) NH₃ → N₂ pathway: Utilizes reaction parameters from the Zhang model^[33]. (2) NH₃ → NOx pathway: Incorporates critical intermediates (HNNO, t-ONNH, c-ONNH) exclusively identified in the Zhu model^[37], which contribute to NO_x formation, as demonstrated both in literature^[54] and by our ReaxFF MD simulations. These intermediates have been systematically integrated into the current mechanism.

The third component incorporates novel reaction pathways identified through ReaxFF MD simulations, notably the H₂N₂O species - a newly characterized NO precursor. This marks the first integration of H₂N₂O into ammonia combustion kinetics (Supplementary File 1, Table S2 for mechanistic details). Reaction parameters for R2-1/R2-2 originate from NIST-curated studies^[55−57], while R2-3/R2-4 parameters were derived through analogy to Zhu's framework^[37].

To enhance NH₃/Air mixture combustion predictability, 21 key reactions (Supplementary File 1, Table S3) are calibrated through synergistic integration of Zhang's^[33] and Zhu's^[37] frameworks. These modifications primarily target: (1) LBV-sensitive reactions (R3−1 to R3−9), (2) IDT-sensitive reactions (R3−10 to R3−18), (3) Product-forming reactions (R3−19 to R3−21) for NH₃/H₂O/NO generation. The final mechanism encompasses 351 reactions and 41 species, with combustion characteristic sensitivities detailed in subsequent analysis.

Model validation

Laminar burning velocity

This model systematically examines LBV across extensive operating conditions, spanning equivalence ratios of 0.8–1.6, pressures of 1–5 atm, and temperatures of 298–500 K. The results are compared and validated against experimental data in the literature^[8−19], as shown in Fig. 8. For validations under additional operating conditions, Fig. S5 in the Supplementary File 1 is referenced. Specifically, Fig. 8a–d investigates the influence of temperature, while Fig. 8d, e focuses on the impact of pressure.

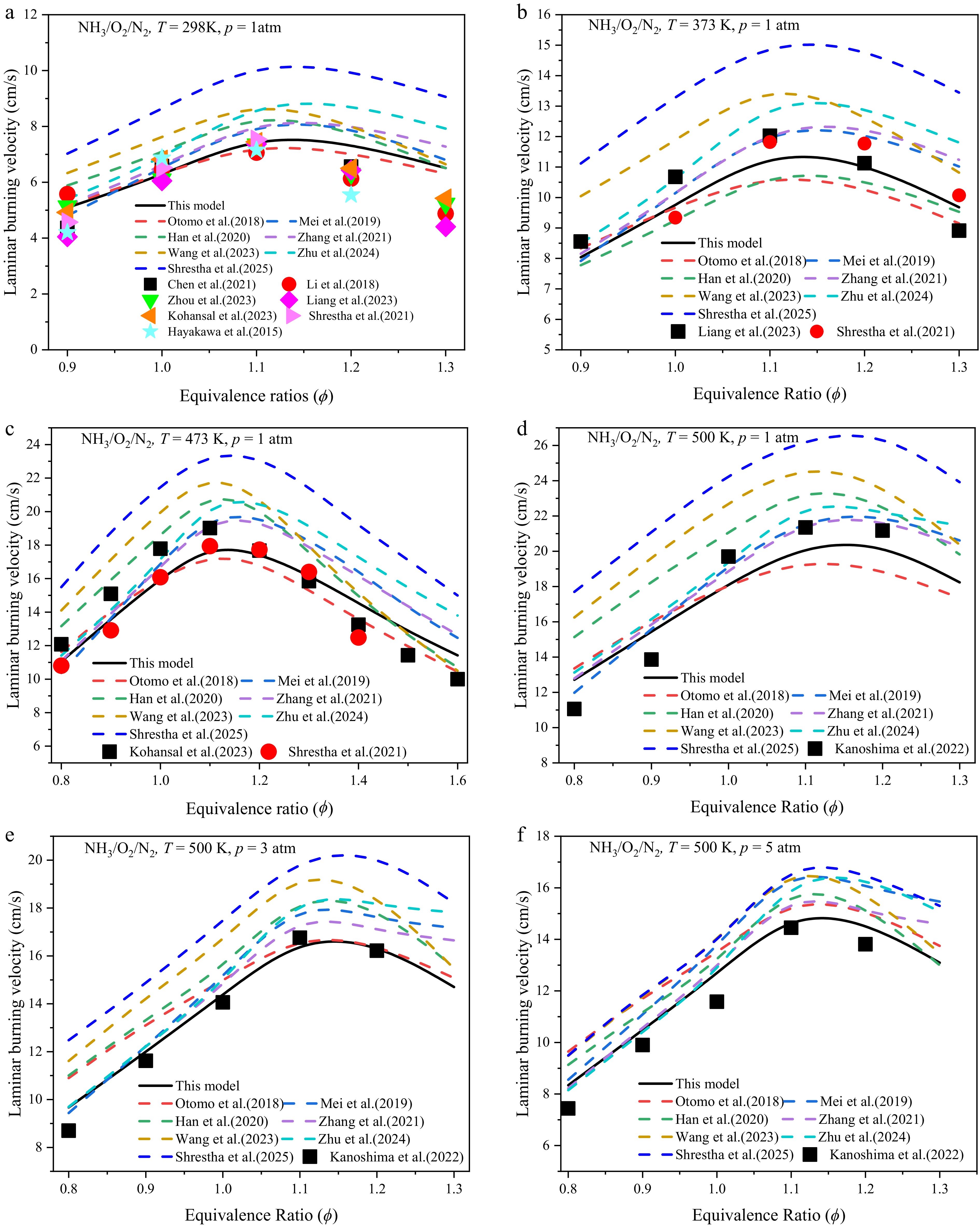

Figure 8.

Comparative verification of laminar burning velocity. (The line is the prediction result of this model and the other seven models, and the points are experimental data, from Hayakawa et al.^[11], Chen et al.^[12], Shrestha et al.^[13], Kanshina et al.^[14], Liang et al.^[15], Zhou et al.^[17], Kohansal et al.^[18], and Li et al.^[58]).

Under different temperatures (i.e., Fig. 8a–d), the current model predicts that laminar burning velocity increases continuously with rising temperature, peaking near an equivalence ratio of 1.1, aligning with literature findings^[10]. At 298 K and 1 atm, ammonia's low flame speed makes it susceptible to buoyancy effects, introducing minor deviations in experimental data under lean- and rich-fuel conditions. Nonetheless, the model's predictions broadly capture experimental trends from lean-fuel to peak equivalence ratios, with slight discrepancies only under moderately rich-fuel conditions. The Otomo model^[32] exhibits comparable accuracy to the current model. Predictions from the Mei^[9], Han^[2], and Zhang^[33] models moderately overestimate experimental values, whereas the Wang^[36] and Zhu^[37] models show significant deviations. At temperatures above 298 K, the current model demonstrates robust performance in predicting laminar burning velocity, covering 90% of experimental data with a minor underestimation at 500 K. The Otomo model^[32] achieves good agreement at 473 K but underestimates result under other conditions. The Mei^[9] and Zhang^[33] models remain slightly over predictive, while the Wang^[36] and Zhu^[37] models perform worst, consistently overestimating experimental results. The Han model^[2] underpredicts at 373 K but overestimates under all other conditions.

Under different pressures (i.e., Fig. 8d–f), the current model's predictions at 3 and 5 atm show exact agreement with experimental values, with only a minor underestimation at 1 atm. The Mei^[9] and Zhang^[33] models demonstrate good accuracy at 1 atm but systematically overpredict under elevated pressures. The Otomo model^[32] achieves partial agreement under fuel-rich conditions at 3 atm, underpredicts at 1 atm, and overestimates at 5 atm. The Wang^[36] and Zhu^[37] models remain the least accurate across all conditions. The Shrestha model^[34] generally overestimates the predictions of ammonia flame speed.

Ignition delay time

Validation is performed across a broad range of conditions, spanning lean-to-rich fuel (equivalence ratio 0.5–2.0), low-to-high pressure (1– 40 atm), and two dilution cases (Ar and N₂), as illustrated in Fig. 9. For additional validations, see Supplementary File 1 (Figs S6 and S7). Under Ar dilution, the current model exhibits excellent agreement with Chen's data, with only a slight overprediction at high temperatures under 10 atm. The Mei^[9] and Zhu^[37] models perform similarly to the current model. The Otomo model^[32] underpredicts at low pressures, while the Han^[2] and Wang^[36] models generally overpredict. The Zhang model^[33] shows the poorest accuracy. For N₂ dilution, the current model's predictions across equivalence ratios of 0.5–2.0 align closely with experimental data. Notably, at an equivalence ratio of 1.0 and 20 bar pressure, the predictions exhibit an exact match with experimental values. Under these conditions, the Zhang model^[33] improves significantly, mirroring the current model's trend. However, the Mei^[9] and Zhu^[37] models underpredict at low temperatures, and other models display limited accuracy. The Shrestha model^[34] predicts ammonia ignition delay times relatively quickly at conditions of 10 atm and below, while its predictions are slower at conditions above 20 atm. In summary, the current model demonstrates robust predictive capability for ignition delay time across wide-ranging operating conditions.

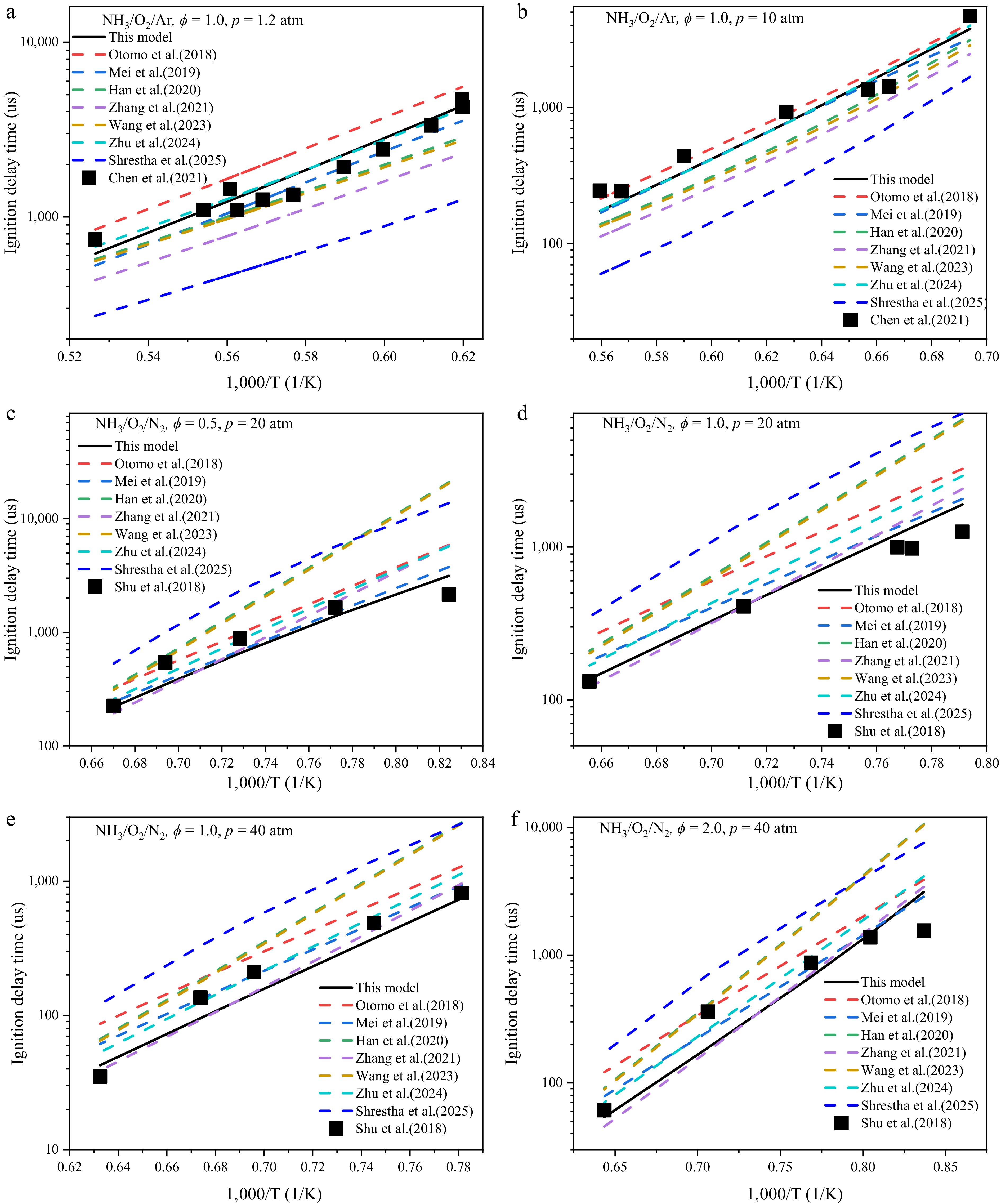

Figure 9.

Comparative verification of ignition delay time. (The lines represent predictions from the present model and the other seven models, while the symbols correspond to experimentally measured data reported in Shu et al.^[22] and Chen et al.^[25]).

Species profiles

Given that ammonia inherently contains nitrogen, its combustion can result in significant emissions of NOₓ pollutants, which predominantly occur under fuel-lean to stoichiometric conditions. Consequently, research on ammonia combustion chemistry emphasizes the analysis of key species such as NH₃, H₂O, NO, and N₂ under lean-fuel environments. The model predictions for these species are validated against experimental data obtained from Dagaut et al.^[27] and Osipova^[29], as shown in Fig. 10. For other simulation conditions, refer to Supplementary File 1 (Fig. S8). The oxidation of NH₃ is mainly divided into three parts: the preparation stage at low temperatures (< 1,300 K), the rapid oxidation process at medium temperatures (< 1,370 K), and the slow oxidation and stabilization at high temperatures (> 1,370 K). In the research on components, the present model still shows good prediction performance. However, a limitation of this model is its tendency to underpredict the consumption rate of NH₃ and the formation rate of H₂O at intermediate temperatures, along with a slight underestimation of NO concentration. In comparison, several existing models exhibit faster prediction rates in this temperature regime. For instance, the models proposed by Otomo et al.^[32] and Mei et al.^[9] overpredict the rates of NH₃ consumption and H₂O generation compared to experimental values. Although the models developed by Zhang et al.^[33] and Zhu et al.^[37] demonstrate improved accuracy in predicting NO formation, they perform poorly in capturing NH₃ consumption and H₂O generation. The models by Han et al.^[2] and Wang et al.^[36] show relatively better performance in predicting NH₃ and H₂O profiles but tend to overpredict the formation rates of NO and N₂. The Shrestha model^[34] predicts changes in NH₃ concentration relatively quickly overall, while also generating products such as H₂O and N₂ at a faster rate.

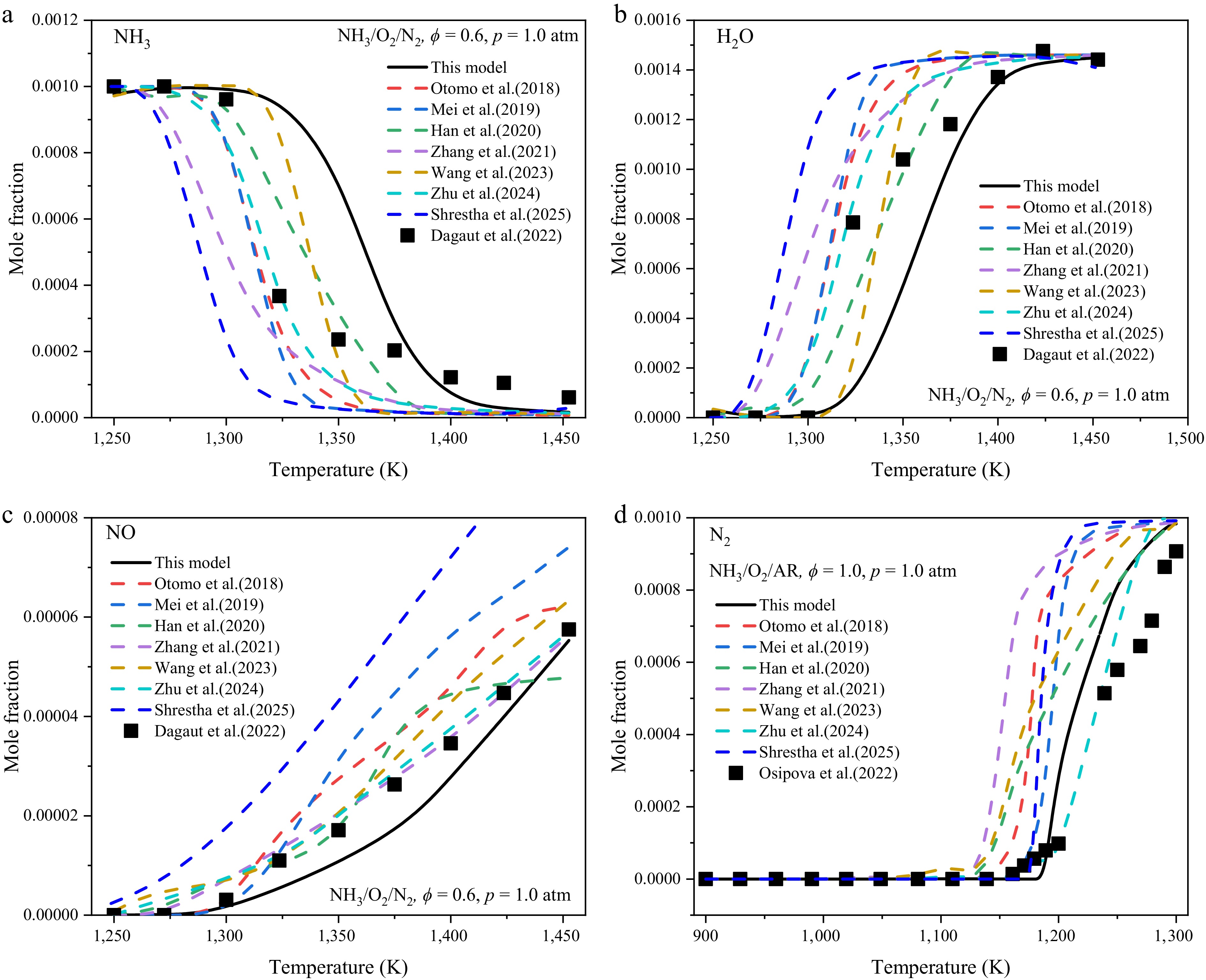

Figure 10.

Species concentration profiles comparison between present model (solid lines), seven reference models (dashed lines), and experimental measurements (symbols) from Dagaut et al.^[27] and Osipova et al.^[29].

Kinetic analysis

Reaction path analysis

Fig. 11 depicts the primary reaction path analysis for ammonia combustion at a temperature of 1,600 K, a pressure of 1 atm, and an equivalence ratio (ϕ) of 1.0. The reaction pathways are analyzed using the nitrogen-element tracing method. Fifteen important reaction species and some reactions with an important reaction channel ratio greater than 1% are listed, Lysis reaction (LR). The results demonstrate that the primary reaction pathways identified by this model are in good agreement with those obtained from ReaxFF MD simulations. The formation of NH₂ from NH₃ mainly occurs through reactions R5, R24, and R25:

Among them, R24 is dominant. The subsequent reactions of NH₂ can be divided into two parts: one is the process of generating N₂, and the other is the process of generating NO.

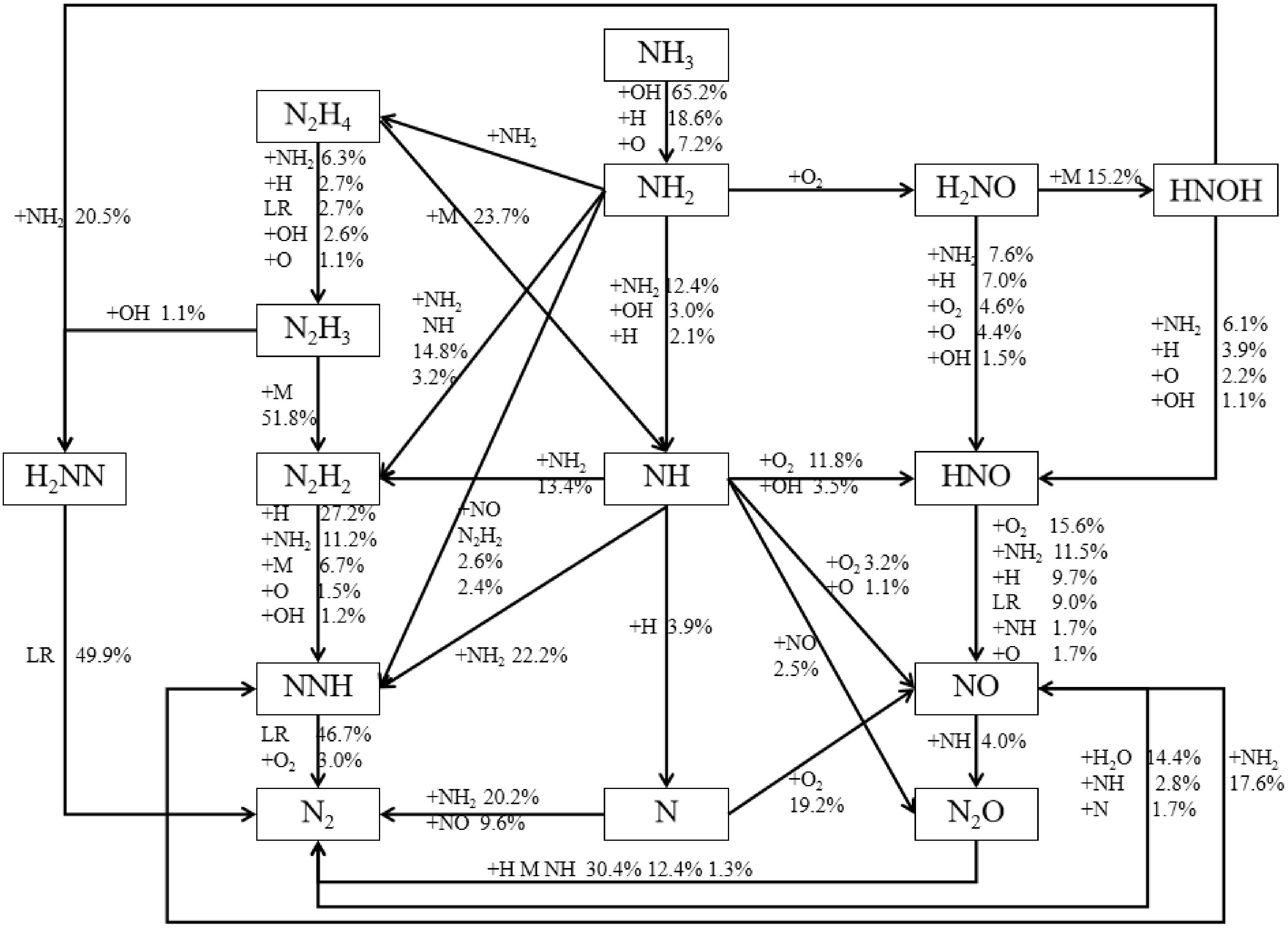

Figure 11.

The main reaction path of the ammonia combustion process.

The process of generating N₂ can be divided into two main paths. One is NH₂ → (NH or N₂H₄ → N₂H₃ →) N₂H₂ (H₂NN) → NNH → N₂, and the other is NH₂ → NH → N(NNH) → N₂. The first path is the primary one. In the first path, the formation of N₂H₄ from NH₂ can occur through reaction R26:

N₂H₂ is generated indirectly. It can also be directly generated into N₂H₂ through reactions R27 and R28:

It is worth noting that in this process, both N₂H₄ and N₂H₃ are regarded as important substances and appear simultaneously in the reaction pathway in this model, which is consistent with the results of ReaxFF MD. However, in other models, these two substances are not simultaneously reflected as important substances in the main pathway. For example, the Otomo model^[32], Mei model^[9], and Zhang model^[33] do not consider N₂H₄ as an important species, while the Wang model^[36] does not include N₂H₃ as one of the 15 important species. The generation of N₂ from N₂H₂ mainly occurs through reactions R29–R35:

This pathway is dominant in the formation of N₂. Although the vast majority of H₂NN is converted into N₂, due to the relatively small amount of H₂NN generated from N₂H₃, the formation of N₂ from H₂NN is not the main pathway.

Similarly, the process of generating NO can also be divided into two main paths. One is NH₂ → NH or H₂NO and HNOH → HNO → NO, and the other is NH₂ → NH → N → NO. The first path is the dominant one, and this path is basically consistent in the analysis of various models. In the main pathway of NO formation, H₂NO and HNOH, as isomers, can react with radicals such as NH₂, H, O, and OH to generate HNO, but H₂NO is dominant, which is consistent with the results of ReaxFF MD. The formation of NO from HNO mainly occurs through reactions R36–R41:

The generated NO can react with substances such as NH and N, enabling inter-conversion with NO. Although HNNO and H₂N₂O, which are involved in the formation of NO, are not shown in this reaction diagram, they are still important substances for NO formation. Moreover, when considering the main reaction pathways involving 20 important substances, HNNO is shown as one of the important substances.

The generated NO can react with substances such as NH and N to achieve mutual conversion with N₂. Although HNNO and H₂N₂O, which are involved in the formation of NO, are not shown in this reaction diagram, they are still important substances for NO formation. Moreover, when considering the main reaction pathways involving 20 important substances, HNNO is shown as one of the important substances.

Sensitivity analysis

To investigate the key reactions influencing ammonia combustion characteristics, a comprehensive sensitivity analysis is conducted under various equivalence ratios, pressures, and temperatures. The results, presented in Fig. 12, include the effects of equivalence ratio on laminar burning velocity (LBV) and ignition delay time (IDT) across different pressure and temperature conditions, along with concentration profiles of major species such as NH₃, H₂O, and NO. A positive sensitivity coefficient indicates that the reaction promotes LBV, IDT, or species formation, whereas a negative value suggests an inhibitory effect.

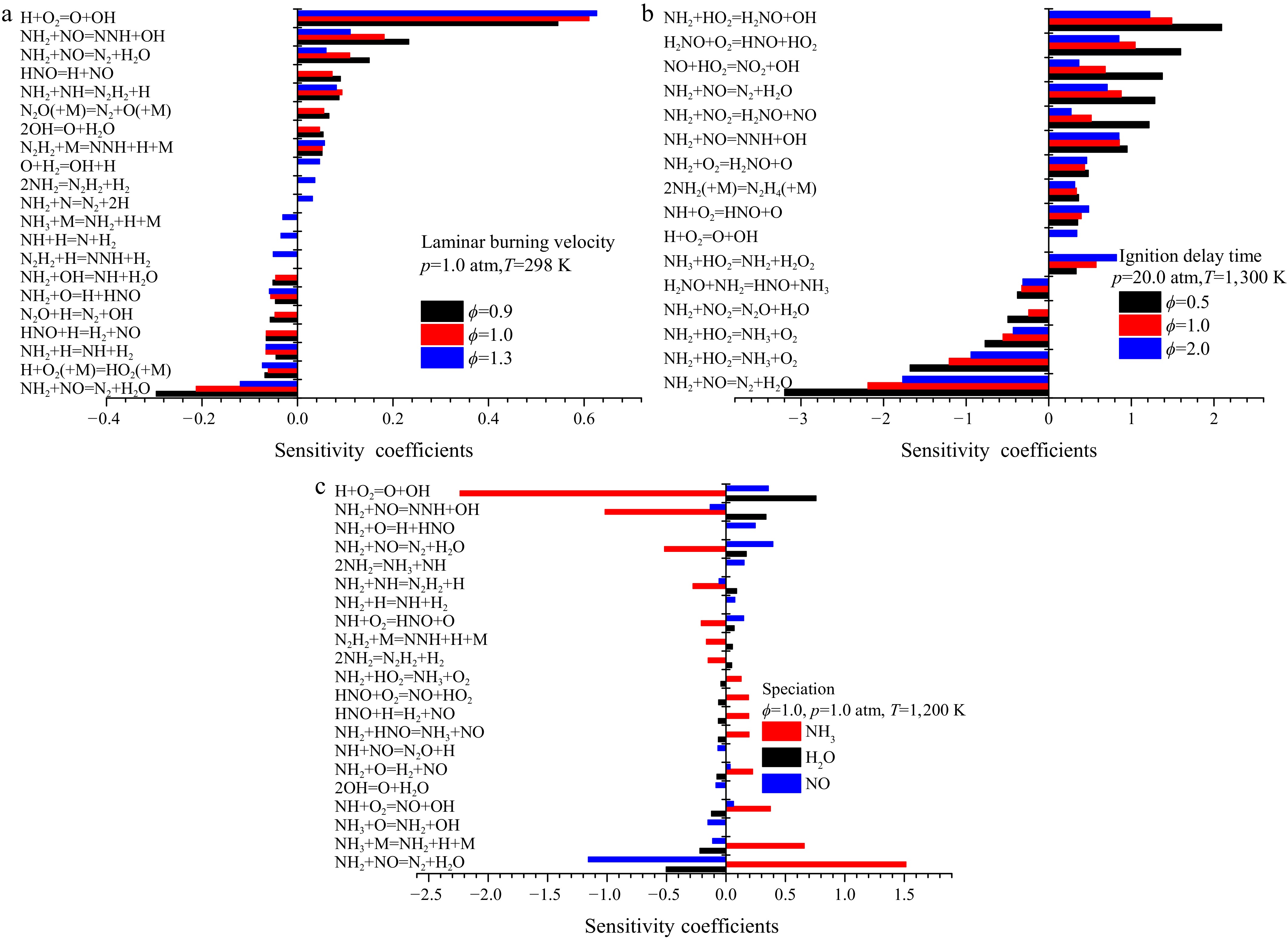

Figure 12.

Sensitivity analysis of laminar burning velocity, ignition delay time, and species.

In the LBV sensitivity analysis, the reaction H + O₂ = O + OH exhibits the strongest promoting effect on ammonia LBV across all equivalence ratios, whereas the reaction NH₂ + NO = N₂ + H₂O shows the greatest inhibitory influence. In addition, reactions such as 2OH = O + H₂O, NH₂ + OH = NH + H₂O, HNO = H + NO, and N₂O (+M) = N₂ + O (+M) are more sensitive under lean-fuel conditions. As the equivalence ratio increases, reactions such as O + H₂ = OH + H, NH₂ + N = N₂ + 2H, and N₂H₂ + H = NNH + H₂ gradually become more sensitive reactions. For IDT, as the equivalence ratio increases, the sensitive reactions basically remain unchanged; only the sensitivity coefficients change. Different from LBV, the reaction NH₂ + HO₂ = H₂NO + OH replaces H + O₂ = O + OH and becomes the most important reaction promoting IDT, while the reaction NH₂ + NO = N₂ + H₂O is still the most important inhibitory reaction. Similarly, the study by Shrestha et al.^[34] also found that the promoting reaction H + O₂ = O + OH was not identified as a key reaction in enhancing NH₃ ignition, while the reaction NH₂ + NO = N₂ + H₂O was observed to significantly inhibit the ignition characteristics of NH₃. The results of the sensitivity analysis of NH₃, H₂O, and NO show that the sensitive reactions of NH₃ and H₂O are completely the same. However, due to NH₃ being a reactant and H₂O being a product, the promoting or inhibitory effects of the sensitive reactions are completely opposite. The most important inhibitory reaction of NO is the same as that of H₂O. The difference is that NH₂ + NO = N₂ + H₂O is the most important reaction promoting the formation of NO, and reactions related to NO formation, such as NH₃ + O = NH₂ + OH and NH + NO = N₂O + H, gradually become more important.

It is worth noting that most of these sensitive reactions are related to NH₃, NH₂, and NH. Whether for LBV, IDT, or H₂O and NO (except NH₃), NH₂ + NO = N₂ + H₂O is always the most important inhibitory reaction, and H + O₂ = O + OH is a relatively important promoting reaction. At the same time, it was found that reactions such as H + O₂ = O + OH, NH₂ + NO = N₂ + H₂O, and NH₂ + NO = NNH + OH are sensitive to any characteristic. The difference is that reactions such as H + O₂ (+M) = HO₂ (+M) and NH₂ + O = H + HNO (and reactions R3−1 to R3−9 in Supplementary File 1, Table S3) are mainly sensitive to LBV, while reactions such as NH₃ + HO₂ = NH₂ + H₂O₂ and NH₂ + HO₂ = H₂NO + OH (reactions R3−10 to R3−18 in Supplementary File 1, Table S3) are more sensitive to IDT, and NH₃ + O = NH₂ + OH and NH + NO = N₂O + H are only sensitive to NH₃, H₂O, and NO.

Additionally, the reaction mechanisms of key intermediates, including OH, NH₂, and NH, during ammonia reaction processes were examined based on rate of production (ROP) analysis. This analysis aims to elucidate the substantial influence of critical reactions on their formation and consumption, as depicted in Supplementary File 1 (Fig. S9). The production rate analysis reveals that reactions such as O + H₂O = 2OH, H + O₂ = O + OH, and O + H₂ = OH + H play major roles in promoting OH generation, many of which involve O radicals. In contrast, reactions including NH₃ + OH = H₂O + NH₂, OH + H₂ = H + H₂O, and NH₂ + OH = NH + H₂O contribute to OH consumption, often accompanied by the formation of H₂O. The primary reactions responsible for the formation of NH₂ and NH are NH₃ + OH = NH₂ + H₂O, NH₂ + OH = NH + H₂O, and NH + OH = H + HNO, indicating that reactions with OH not only serve as the main pathway for NH₃ consumption but also act as key channels for generating NH₂ and NH. The further consumption of NH₂ and NH also occurs via reactions with OH, such as NH₂ + OH = NH + H₂O and NH + OH = H + HNO, underscoring the crucial role of OH in the ammonia combustion process.

Based on the ReaxFF MD simulation method, this paper methodically investigated the effects of varying equivalence ratios and temperatures on ammonia combustion behavior while elucidating the molecular-level reaction network and formation mechanisms of major products. By integrating newly identified ReaxFF MD-derived reaction pathways with existing mechanisms, a comprehensive ammonia combustion mechanism was developed. Furthermore, the model's combustion characteristics were extensively validated across diverse conditions. Key conclusions are summarized below:

(1) Variations in equivalence ratios (i.e., oxygen content) do not alter the reaction sequence of key radicals and products during ammonia combustion but significantly influence their quantitative yields. Elevated temperatures accelerate reaction kinetics, enhancing both the formation rates and peak concentrations of critical radicals and products.

(2) ReaxFF MD simulations reveal that NH₂ undergoes multiple reaction pathways, predominantly forming N₂ and NO. While isomers HNOH and H₂NO both contribute to HNO generation, H₂NO exhibits a dominant role. NO formation is primarily mediated by HNO, whereas N₂ production relies on NNH. Crucially, H₂N₂O and HNNO act as pivotal intermediates in NH₃ combustion, driving the conversion of NO to N₂ via the sequential pathway: NO → H₂N₂O → HNNO → N₂.

(3) Employing a hierarchical construction approach, the critical reaction pathways in ammonia combustion were systematically identified through chemical kinetic analysis. By integrating ReaxFF MD simulations with combustion mechanism analysis, these reaction channels were rigorously validated and refined, culminating in a comprehensive ammonia combustion mechanism comprising 351 reactions and 41 species. Notably, the H₂N₂O species was incorporated into the ammonia kinetic mechanism for the first time as a pivotal pathway for NO formation. The mechanism was extensively validated across diverse operating conditions, including flame propagation speed, ignition delay time, and species concentration profiles. Results demonstrate strong predictive accuracy, confirming the model's robustness in capturing multi-target combustion characteristics.

(4) The mechanism reveals through path analysis that ammonia combustion reaction pathways are primarily categorized into two dominant routes: one governing N₂ formation and another involving NH₂ conversion to NO_x. The analytical results align closely with simulations obtained via the ReaxFF MD method. Sensitivity analysis further identifies that the majority of sensitive reactions are associated with species including NH₃, NH₂, NH, and H. Notably, Sensitivity analysis of laminar burning velocity (LBV), ignition delay time (IDT), and key species reveals that the inhibiting reaction NH₂ + NO = N₂ + H₂O consistently dominates across these three combustion characteristics. The promoting reaction H + O₂ = O + OH remains significantly influential on flame speed and the formation of major species, while its promoting effect on IDT becomes nearly negligible. Conversely, the reaction NH₂ + HO₂ = H₂NO + OH exhibits the strongest promoting effect on IDT. Furthermore, NH₂-involved reactions that generate radicals such as OH and O, as well as those producing N₂ and H₂O, also contribute substantially to enhancing the ignition performance of ammonia.

This study effectively promotes the efficient application of NH₃. High-precision NH₃ combustion mechanism research reveals the unique nitrogen chemistry behavior of NH₃, particularly key intermediates and reaction pathways (e.g., NH₂ + HO₂ = H₂NO + OH, NH₂ + NO = N₂ + H₂O), deepening the understanding of nitrogen-containing fuel combustion mechanisms. In terms of model development, this study develops a high-precision kinetic model applicable over a wide range of conditions. It solves deviations in traditional mechanisms and offers a reliable foundation for simulating and predicting complex fuel systems like ammonia and its blends. This strongly supports the engineering application of low-carbon energy technologies.
