Prediction of the sooting tendency of fuel mixtures with quantitative structure-property relationship (QSPR) model based on artificial neural network approach

The design of fuels offers the possibility of simultaneously increasing thermal efficiency and decreasing pollutant emissions for practical combustion devices, which requires, nevertheless, an accurate knowledge of the physical and chemical properties of fuel candidates. In addition to the widely considered properties, such as octane number, cetane number, and heating value, the yield sooting index is of growing interest due to the increasingly stringent emission regulations and the importance of joint consideration of combustion and pollutant performance^[1]. The yield sooting index (YSI), which was proposed originally by the Pfefferle group at Yale University, characterizes the fuel-sooting behavior^[2] based on the maximum soot concentration of a methane/air co-flow flame doped by this fuel. Literature studies^[2−4] determined the YSI values of 428 neat fuel species for various fuel classes, including alkanes, alkenes, aromatics, alcohols, ethers, and esters. Very recently, Cheng et al.^[5] reported the YSI of 21 neat fuel components and 151 mixtures of them. This pioneering study and its valuable datasets open unprecedented possibilities for understanding the sooting characteristics of fuel blends.

Efforts were made in the literature to develop analytic and numerical models for the estimation of fuel properties, such as YSI, mostly for neat fuel components^[3,6−13]. In previous work^[5], artificial neural network (ANN) models were proposed to estimate the YSI of fuel mixtures by taking the reported dataset^[5] as the training data and the mass fractions of mixture components as input features. However, literature studies^[14−16] have demonstrated that ANN models can predict the physical and chemical properties of fuels very satisfactorily, including YSI, and provide insights into the influence of molecule structures on properties if structure information of fuel molecules can be taken into account in ANN models.

Therefore, in this study, to predict the YSI of fuel mixtures with improved accuracy and to understand the impact of molecular functional groups on the sooting tendency of fuel mixtures, an ANN-based quantitative structure-property relationship (QSPR) model is developed. In conjunction with the mass fractions of mixture components, functional group descriptors are taken as input features, following the previous works^[14,15]. With this, the present model is supposed to provide increased prediction accuracy and enable functional analysis beyond previous models. The model is cross-validated against the datasets reported by Cheng et al.^[5]. Sensitivity analyses are performed to evaluate the effects of functional groups on fuel's sooting tendency for various blending ratios and fuel classes, which is infeasible with previous models.

The ANN model was developed with the Tensorflow Package provided by Keras^[17]. Following previous works^{[14,15,18,19]}, the molecular group descriptors were employed as input features. For a specific fuel j, the quantity of group i contained in it is denoted by x_i,j and its YSI value is indicated by y_j. To ensure a good training convergence, the input data x_i,j and the target data y_j were normalized as:

here, $ \overline{x} $ , and $ {\mathrm{\sigma }}_{x,i} $ are the mean values and standard deviations of the numbers of feature i on the entire fuel dataset. The quantity of group i in the mixture is estimated as the quantity of this group in component j multiplied by the mass fraction of this component in the mixture.

In the ANN model, the input data is transferred to the hidden layers, where the input of each neuron consists of the sum of the outputs of neurons in the prior layer and additional biases. Following our previous works^[14,15,20], K-fold cross-validation with a variety of random seeds was considered in the model development, which rigorously evaluates the model prediction accuracy by testing its performance across diverse and statistically representative subsets. The dataset was partitioned randomly into K subsets of identical size for the training of K models. Each model was trained with a distinct subset as the validation set, while the remainder was used for training. The model performance was evaluated based on the values, including the correlation coefficient (R²), mean absolute percentage error (MAPE), and root mean squared error (RMSE) across the K models. Due to the influence of varying distributions of the K subsets on prediction accuracy, a number of random seeds were utilized, with the selection of the seed that yielded the optimal model performance. The implementation of a 5-fold cross-validation was adopted in this study.

QSPR method

As the physical and chemical properties of fuels are highly sensitive to their molecular structures, QSPR models are often developed to estimate the property values^{[14,15,20−22]}. In this study, an ANN-based QSPR model was proposed by providing molecule functional groups as input features. To determine molecular groups and their values, the library descriptors within the open-source cheminformatics software RDKit^[23] were used to extract required information from molecules, which are represented by simple molecular-input line-entry system (SMILES) codes^[24]. Eight functional groups, which are involved in the species available in the dataset^[5] and shown in Table 1, were selected as initial input features. Note that more functional group descriptors and model retaining will be required if additional fuel classes, such as ester and ether, are added to the training dataset.

As the prediction of YSI may be insensitive to certain features, an iterative backward feature elimination process^[25] was carried out to obtain an optimal set of input features. The feature combination with the highest correlation coefficient (R²) was selected to ensure the highest model prediction accuracy. Features with minimal impact on generalization capability were eliminated. It was found that the highest R² was achieved by removing the group Tr. Thus, seven features were selected as input features for the final model.

Computational details

The definition of hyper-parameters is of high importance for the performance of the ANN model^[14,20]. To find the optimal combination of hyper-parameters with low deviation and computational cost, the random search method was employed in this study to assess the model performance for different sets of hyperparameters. The adaptive moment estimation algorithm (Adam)^[26] provided by TensorFlow^[27] was employed as an optimizer due to its high convergence performance. The method used in this work incorporates two loops with cross-validation. The first inner loop identifies the best model for different hyper-parameter combinations in terms of mean RMSE over all cross-validation splits. It is then considered in the second loop, where its performance is evaluated based on held-out test data. The output consists of a list of parameter sets, along with the scores of the first (RMSE_inner) and second loop (RMSE_test, r2_test), facilitating the identification of the optimal set of hyper-parameters.

It was found that the optimal numbers of neurons for the two hidden layers are 128 and 1,024, respectively, and the rates for the two dropout layers are both 10%. The Adam hyper-parameters α, β₁, and β₂ are 0.008, 0.9, and 0.9995, respectively. The activation function is ReLU (Rectified Linear Unit), and the optimal training epoch number is 700.

Training dataset

The YSI dataset of 21 neat fuel components and 151 mixtures of them reported by Cheng et al.^[5] was considered in this work for the model training. Three fuel classes, alkanes, cycloalkanes, and aromatics, are involved. Isomers are considered by distinguishing them with functional groups. The YSI of each fuel was employed as a benchmark metric to evaluate model prediction efficacy. Functional groups and the mass fractions were integrated as input features for model training. The blending ratios of mixtures are between 0 to 94%.

Sensitivity analysis

To gain a deeper insight into the impacts of different molecular groups on the sooting tendency of the fuel mixtures, local sensitivity analysis on the input features is performed by using the perturbation method^[28], following our previous works^[14,15,20]. Each input feature was perturbed over the whole dataset with 20% of its standard deviation over the dataset. The YSI's sensitivity S_i,j on the feature x_i for a particular fuel species j is calculated as:

where, x_j is the vector of feature values for fuel species j.

An ANN-based QSPR model was developed using the approaches described in the previous section. Its performance is demonstrated in this section. The results of sensitivity analysis are shown here as well for a deep understanding of the impacts of functional groups on the sooting tendency of fuel blends.

The performance of the derived ANN-based QSPR model is illustrated in Fig. 1. It is seen that the model predicts the YSI of neat components and their mixtures with high accuracy. An R² value of 0.990 is obtained in conjunction with an mean absolute error (MAE) value of 2.015.

Figure 1.

Comparison of measured and predicted YSI values.

The present model is compared with those ANN models proposed by Cheng et al.^[5] in terms of error measures, including correlation coefficient, mean deviation, mean relative error, root mean square error, and mean absolute error. The results are shown in Table 2. It is seen that, regarding all error measures, the QSPR model developed in this study gives more satisfactory results than those models developed by taking only mixture compositions as input features, while some models are proposed with ANN approaches as well. Obviously, the incorporation of chemical molecule information in terms of functional groups improves the performance of the ANN model.

The results of sensitivity analyses are presented next. The averaged sensitivities of YSI of neat components and mixtures on different functional groups are shown in Fig. 2. It should be noted that some groups are missing in certain fuel classes. For instance, the group Q is only available in alkane fuels. Thus, even though it is numerically possible to estimate the sensitivity of YSI of cycloalkanes and aromatics in group Q, this meaningless value is not presented and considered for further analysis.

Figure 2.

Averaged sensitivities of YSI of neat components and mixtures on different functional features.

As shown in Fig. 2, while the impacts of some groups, such as S, Q, Sr, and Tr*, increase by blending, the groups T and Sr* have a smaller influence in the mixtures than in the neat components. Moreover, it is interesting that the sensitivities of YSI of blends on groups can be significantly different from those of the neat components, for instance, for the P group. This can be attributed to the relatively high composition of alkanes in the mixtures with cycloalkanes or aromatics. The mixture composition plays an important role in the sooting tendency of fuel blends in conjunction with the functional groups.

The average sensitivities of YSI of mixtures with different compositions on functional groups are shown in Fig. 3. For most groups, mixtures only consisting of alkanes show higher sensitivities than other mixtures. However, this should be further verified and analyzed in more detail, as the input datasets contain only one fuel mixture that is solely composed of alkanes. More data and analysis are required to confirm this very high sensitivity. For blends of alkanes and cycloalkanes, the functional groups T and $ {\mathrm{S}\mathrm{r}}^{\mathrm{*}} $ show opposite effects on the YSI compared to other mixtures. With the exception of blends composed only of alkanes, the mixtures containing alkanes, cycloalkanes, and aromatics in the dataset exhibit the highest sensitivities in most functional groups.

Figure 3.

Averaged sensitivities of YSI of mixtures on functional features.

Group Q exhibits consistently large negative sensitivity across all fuel mixtures and also for neat components. Data from Pfefferle et al.^[29] also show that Q-rich neat fuels exhibit significantly lower YSI. This suggests that group Q has a positive effect in reducing the sooting tendency of both neat and blended fuels. The reason for this may lie in the inhibited production of soot precursors, such as acetylene and propyne, during the oxidation and combustion of Q-rich fuels.

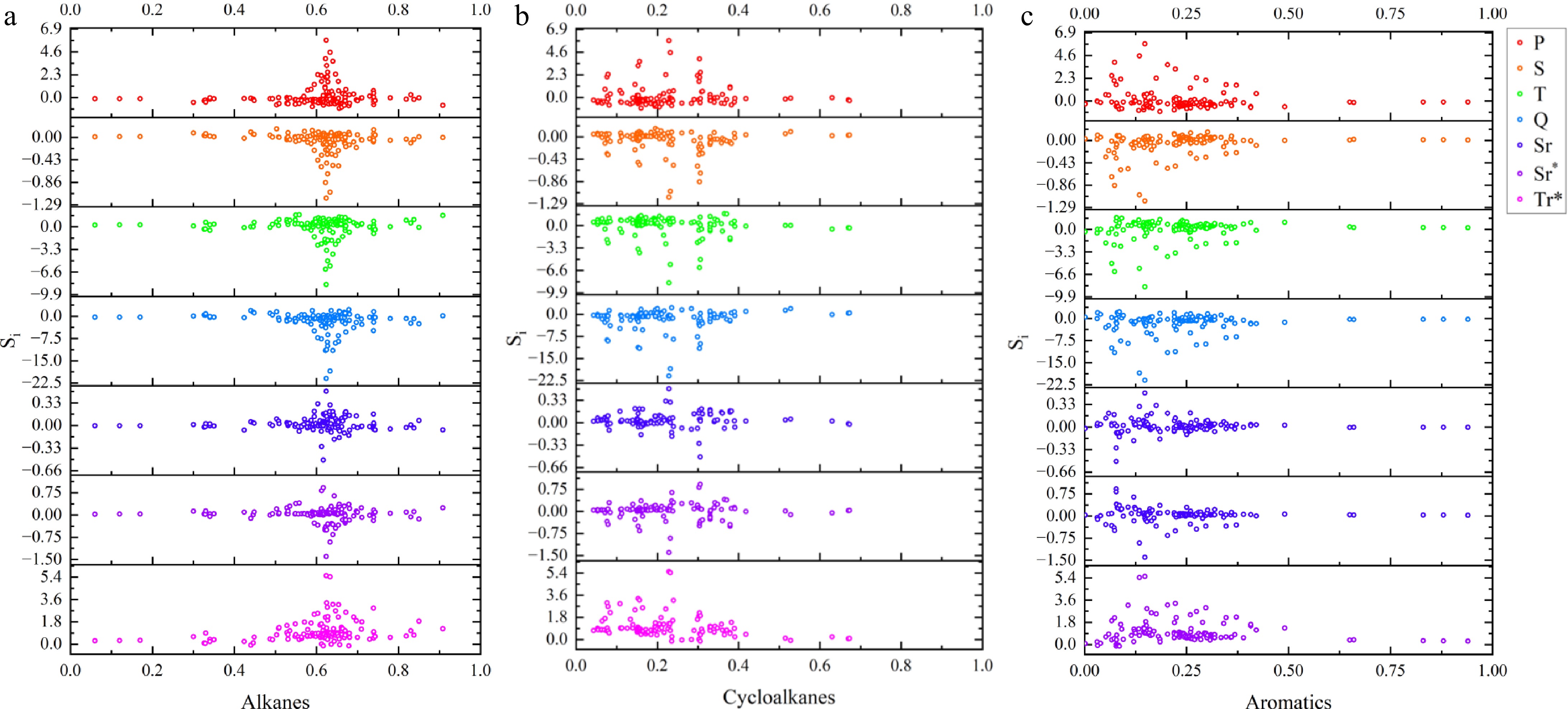

For a deeper insight, the sensitivities of YSI on functional groups are also determined for different blending ratios of fuel classes. The results are shown in Fig. 4. For alkanes, notable sensitivities on functional groups are observed for blending ratios of 60%–70%, while impacts of functional groups are more pronounced at blending ratios of < 40% for cycloalkanes and aromatics. Interestingly, for alkanes at blending ratios of roughly 60%, the functional groups Sr and Sr* can have both positive and negative influences on the sooting behaviors of different blends. This can be observed for cycloalkanes and aromatics at small blending ratios as well. The impact of the secondary carbon group on the YSI is obviously ambiguous and depends on mixtures. For the other five groups, their impacts for different fuel classes are, in general, consistent.

Figure 4.

Sensitivities of YSI on functional features over blending ratios of fuel classes.

In summary, group Q suppresses the soot formation of fuel mixtures significantly, while group Tr* strongly enhances the sooting tendency. Sr and Sr* can have both positive and negative influences on the sooting behaviors, depending on the fuel blends. These observations provide valuable information for the future design of fuel mixtures with low soot emissions.

An ANN-based QSPR model is developed in this study to estimate the YSI of fuel components and their mixtures. In addition to mass fractions of mixture components, functional groups of molecules are taken as additional input features, establishing a more accurate ANN model. As expected, the present model shows prediction advantages over ANN models proposed in the literature, which only consider mixture composition as input information. Moreover, it facilitates the functional group analysis, and thus, the impacts of functional groups on the sooting tendency of fuel mixtures are explored. It was found that the impact of functional groups is not necessarily larger in mixtures and can be different in mixtures than in neat components. Regardless of the mixture components, the quaternary carbon group in the molecule structure can contribute to a soot reduction. Except for secondary carbon groups, the impacts of functional groups are, in general, consistent for different fuel classes but depend on blending ratios.
